Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats

Name: Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Brand: DOOWIN MARINE
Price: 1000 USD

China Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats wholesale

Brand Name : DOOWIN MARINE

Model Number : BMBH 1-20 ,BMBC1-25

Certification : SGS, BV

Place of Origin : China

MOQ : 1pc

Price : USD$ 1000 - 6900

Payment Terms : T/T

Supply Ability : 10pcs/per week

Delivery Time : 2~3 weeks

Packaging Details : Pallet or Plywooden Box

Name : Commercial Mooring Buoys

Material : Closed Cell Foam Core

Shape : Spherical,or customized

Corrosion Resistance : High

Weather Resistance : Excellent

Skin : Polyurethane Elastomer

Contact Now

Commercial Barrel Mooring Buoys Chain Throughtype Marine PE Floats

Commercial barrel mooring buoy is one kind of representative mooring buoy. This commercial mooring buoy has a barrel shape with chain through, handling crucifix, modular type.

The steelwork construction through the buoy’s middle vertically. It can be supplied with handling crucifix an chain-through design. The barrel mooring buoys are constructed by resilient closed cell polyethylene/EVA foam around the inner central steelwork, covered by polyurethane (PU) other skin. The resilient closed cell polyethylene/EVA foam core guarantees self-fendering and unsinkable even in case of damage. And self-colored polyurethane elastomer skin is resistant to abrasion and ultraviolet ray degradation.

For extreme service environments, the polyurethane elastomer skin can be reinforced by nylon to protective coating has higher tear strength, making the buoy long-lasting and virtually maintenance-free.

Commercial Barrel Mooring Buoys Specification
We make several kinds of barrel mooring buoys with below-rated buoyancy. Commercial Mooring Barrel Buoys – Chain Through, Handling Crucifix & Modula

Barrel Mooring Buoy with Handling Crucifix

Type	Diameter (mm)	Length (mm)	Overall Height (mm)	Weight (kg)	Net Buoyancy (kg)	Net Buoyancy (lbs)
BMBH-1	1,050	1,800	1,950	400	1,000	2,205
BMBH-2	1,300	2,080	2,200	540	2,000	4,409
BMBH-3	1,540	2,080	2,400	650	3,000	6,614
BMBH-4	1,500	2,900	2,350	880	4,000	8,818
BMBH-5	1,650	2,900	2,500	1150	5,000	11,023
BMBH-6	1,800	2,900	2,650	1250	6,000	13,228
BMBH-8	1,900	3,600	3,260	2000	8,000	17,637
BMBH-10	2,100	3,600	3,360	2200	10,000	22,046
BMBH-12	2,200	3,850	3,460	2300	12,000	26,455
BMBH-15	2,400	4,100	3,660	2550	15,000	33,069
BMBH-20	2,700	4,150	3,960	3200	20,000	44,092

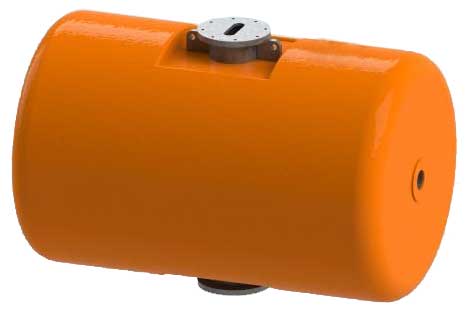

Barrel Mooring Buoy with Chain Through

Type	Diameter (mm)	Length (mm)	Overall Height (mm)	Weight (kg)	Net Buoyancy (kg)	Net Buoyancy (lbs)
BMBC-06	880	1,240	1,175	110	600	1,320
BMBC-1	1,050	1,500	1,050	225	1,000	2,200
BMBC-2	1,250	2,100	1,250	415	2,000	4,400
BMBC-3	1,520	2,100	1,520	575	3,000	6,600
BMBC-4	1,520	2,900	1,520	1,100	4,000	8,800
BMBC-5	1,650	2,900	1,650	1,100	5,000	11,000
BMBC-6	1,820	2,900	1,820	1,200	6,000	13,200
BMBC-8	1,970	3,150	1,970	1,400	8,000	17,600
BMBC-10	2,100	3,500	2,100	1,700	10,000	22,000
BMBC-15	2,400	4,100	2,400	2,550	15,000	33,000
BMBC-20	2,700	4,150	2,700	3,200	20,000	44,000
BMBC-25	2,750	5,900	2,750	4,700	25,000	55,000

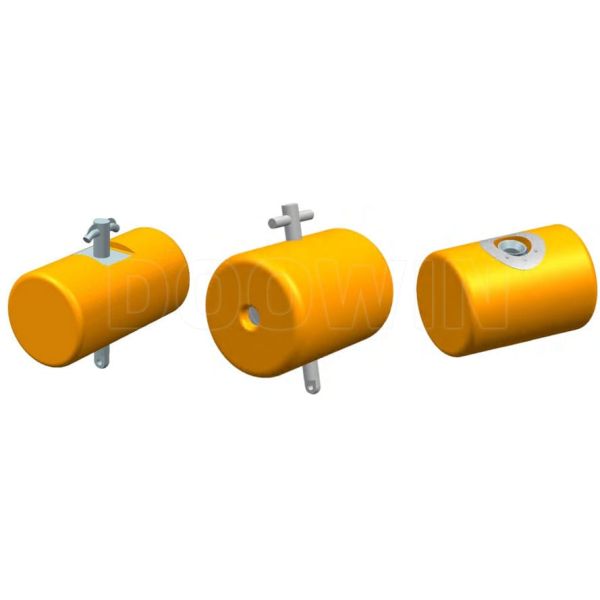

Other Design Barrel Mooring Buoy
