Cylindrical Yellow Orange Mooring Buoy , Foam Filled Mooring Buoys SGS Certified

Name: Cylindrical Yellow Orange Mooring Buoy Foam Filled Mooring Buoys SGS Certified
Brand: DOOWIN MARINE
Price: 250 USD

China Cylindrical Yellow Orange Mooring Buoy , Foam Filled Mooring Buoys SGS Certified wholesale

Brand Name : DOOWIN MARINE

Model Number : CMB

Certification : SGS, BV, CCS, ABS, LR, BV.

Place of Origin : China

MOQ : 1pc

Price : USD$ 250~3900

Payment Terms : T/T

Supply Ability : 10pcs/per week

Delivery Time : 2~3 weeks

Packaging Details : Pallet or Plywooden Box

Product Name : Yellow Mooring Buoy

Product Color : Yellow, orange, or customized

Skin : Polyurethane Elastomer

Product Lifespan : 10 years

Product Size : Varies depending on type and purpose

End Fittings : 1-1/2” Swivel (Hot Dipped Galvanized)

Product Weight : Varies depending on type and purpose

Inner core : Closed cell foam core

Warranty : 2 years

Contact Now

Polyethylene Foam Buoyancy Marine Accessories For Boat Bullet Buoy

Foam mooring buoys are in service for inland waterways and offshore instead of traditional steel mooring buoys.

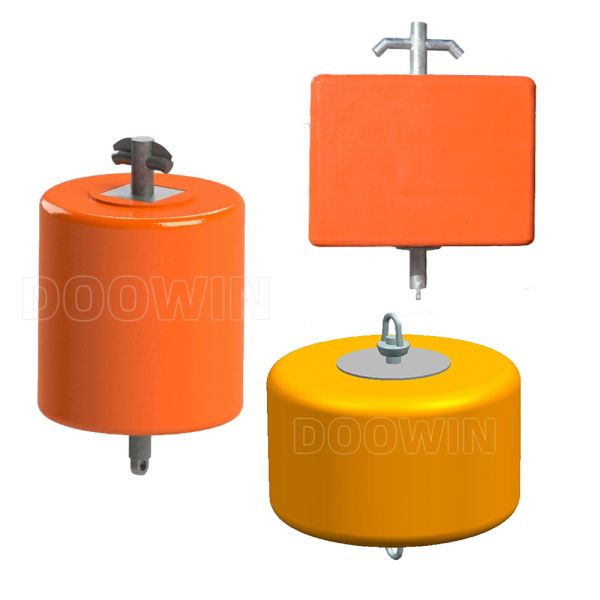

The cylindrical mooring buoy is one kind of representative mooring buoy. The cylindrical mooring buoys can be supplied in chain-through type, or equipped with pad-eye, crucifix, quick release hook, and maker or navigation equipment. Other varieties of end fittings are available to suit every case application. All end fittings are made of galvanized or painted steel to resist seawater corrosion. Application for commercial mooring buoys are offshore and remote mooring, temporary mooring of vessels in a port, dock or harbour, additional mooring for large vessels on berthing/mooring dolphins and longer term mooring for infrequently used vessels.

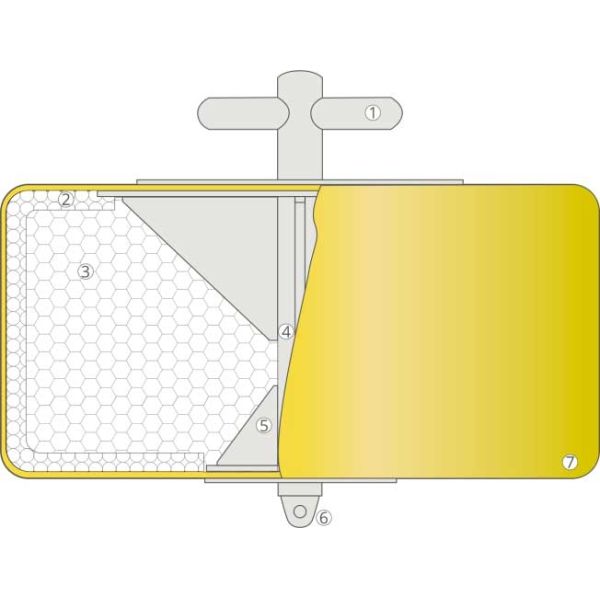

Upper end fittings (various options available)
Resilient out foam (available upon request)
Rigid inner foam
Internal steel core
Load distribution plates
Lower end fitting (mooring eye shown)
Reinforced urethane elastomer skin

This drawing shows a typical specification only. For the specific design of each buoy, please feel free to contact us.

Cylindrical Mooring Buoys Specification
The below table shows the most commonly requested size only. The standard color is yellow and orange

Type	Height (mm)	Diameter (mm)	Overall Height (mm)	Weight (kg)	Net Buoyancy (kg)	Net Buoyancy (lbs)
CMB1	700	1500	1500	161	1000	2207
CMB3	1100	2000	2200	544	3000	6620
CMB5	1500	2500	2500	1104	5000	11033
CMB8	1500	2500	3100	1698	8000	17652
CMB10	1500	2500	3300	1924	10000	22065
CMB15	2000	3000	3500	2886	15000	33098
CMB20	2000	3000	4000	4021	20000	44131
CMB25	2000	3000	4000	5027	25000	55163
CMB30	3000	4000	4200	6650	30000	66196

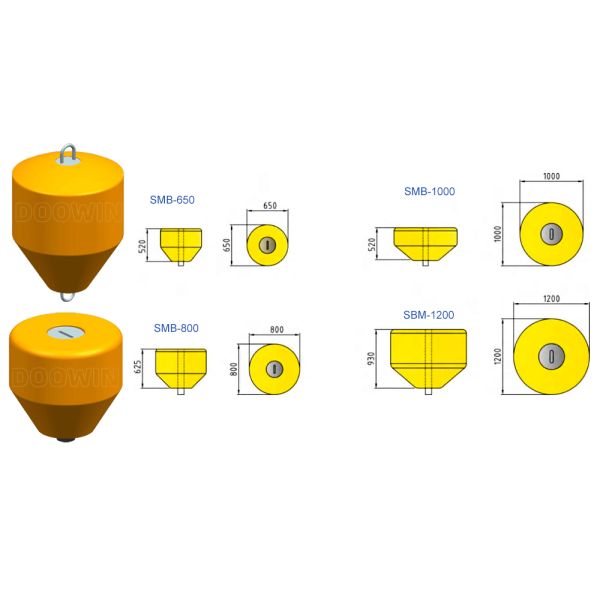

SM Mooring Buoys

The mooring buoys can be installed with various fittings on the top. And the mooring buoys can be designed to meet different requests. It has the same design as common mooring buoys.

The large mooring tube with 82.5mm ID will accept mooring chain of up to 20mm in diameter. The mooring tube is not molded into the buoy but slides into a tubular section that runs down the center of the buoy enabling the tube to be replaced at any stage during the product’s service life.

Customized size are available upon request.
